Z400EL

Prices from £7,300 + vat

Please contact us for further information on options and packages available.

Description

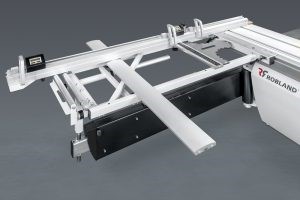

Outrigger table

Large outrigger table with telescopic cross-cut fence, index system and digital read out on flippers.

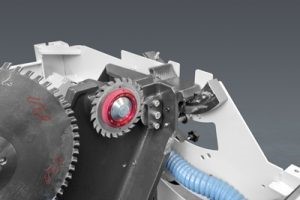

Saw aggregate

Saw aggregate rotating on shells maintaining the origin while tilting.

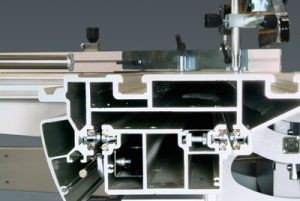

Sliding table

The hard anodized sliding table is precision machined. The heart of the sliding table is 8 hardened steel rods inserted into the table extrusion, thus making the whole system extremely wear-free.



Saw guard

Overhead saw guard with integrated tube for aspiration.

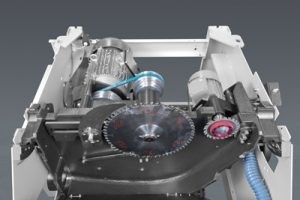

Cast iron saw aggregate

Saw aggregate in cast iron for more precision and stability.



Without scoring blade

400 mm saw without scoring blade.

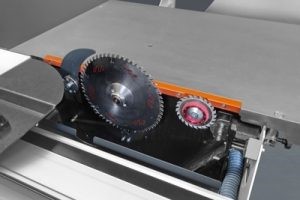

With scoring blade

350 mm saw with scoring blade



Control panel

Control panel Z400 EL and digital reading of height and tilt of the saw blade.



Digital read-out

Digital read-out on parallel fence



Led strip

LED strip lights up when using scoring blade

Technical Details

Technical Data (Inch)

Technical Data (CM)
