Z400X3

Prices from £12,000 + vat

Please contact us for further information on options and packages available.

Description

Outrigger table
Large outrigger table with telescopic cross-cut fence, index system and digital read out on flippers.

Saw aggregate
Saw aggregate rotating on shells maintaining the origin while tilting.

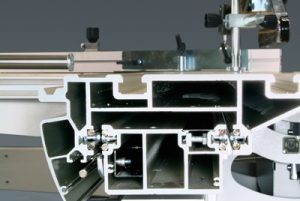

Sliding table
The hard anodized sliding table is precision machined. The heart of the sliding table is 8 hardened steel rods inserted into the table extrusion, thus making the whole system extremely wear-free.

Saw guard
Overhead saw guard with integrated tube for aspiration.

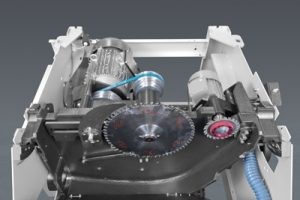

Cast iron saw aggregate
Saw aggregate in cast iron for more precision and stability.

Without scoring blade
400 mm saw without scoring blade.

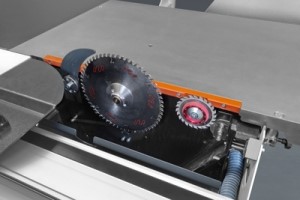

With scoring blade
350 mm saw with scoring blade

Touchscreen
Overhead numerical touchscreen control panel for 1 or 3 axes enhancing precision and productivity.

Led strip
LED strip lights up when using scoring blade









Technical Data

Technical Data (Inch)

Technical Data (CM)
